Standing at the entrance to one of Connecticut’s most active maritime centers, New Haven Outer Breakwater Lighthouse once served as an important guide for vessels entering New Haven Harbor from Long Island Sound. Known locally for many years as Sperry Light, the structure stood for only a little more than four decades, yet its story reflects the challenges of harbor engineering, the dedication of lighthouse keepers, and the constant struggle to maintain structures in an unforgiving marine environment.
During the late nineteenth century, New Haven Harbor was undergoing a major transformation. Federal harbor improvements included the construction of a system of granite breakwaters designed to protect shipping from the heavy seas of Long Island Sound. These breakwaters greatly improved navigation but also introduced a new hazard: vessels approaching the harbor at night or in fog risked colliding with the long stone walls projecting into the Sound.
|
Recognizing this danger, the United States Lighthouse Board recommended in 1896 that a lighthouse with a fog signal be erected on the eastern end of the outermost breakwater. The proposed light would serve two purposes—guiding vessels safely into the harbor and warning mariners of the breakwater itself. The board estimated that the station could be built for about $45,000.
Congress responded the following year. On June 4, 1897, it appropriated $25,000 for the project and authorized contracts for a station costing up to $75,000. Because the initial appropriation was insufficient to complete the work, the Lighthouse Board requested additional funds. An act approved July 1, 1898, provided another $50,000, allowing the project to proceed.

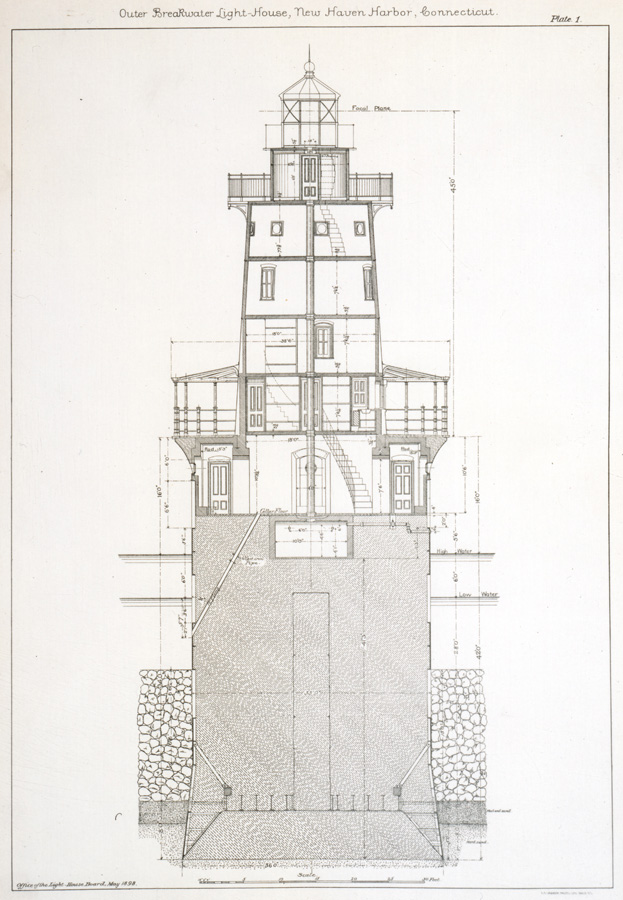

Plans called for a modern offshore lighthouse built on a large iron caisson foundation. In September 1898, a contract was signed for the fabrication of the metalwork, and another contract was awarded two months later for the erection of the structure. The work was carried out by Toomey Brothers, a firm experienced in marine construction that would later build other notable lighthouses along the East Coast, including Hog Island Shoal Lighthouse in Rhode Island and Point No Point Lighthouse and Hooper Island Lighthouse in Maryland.

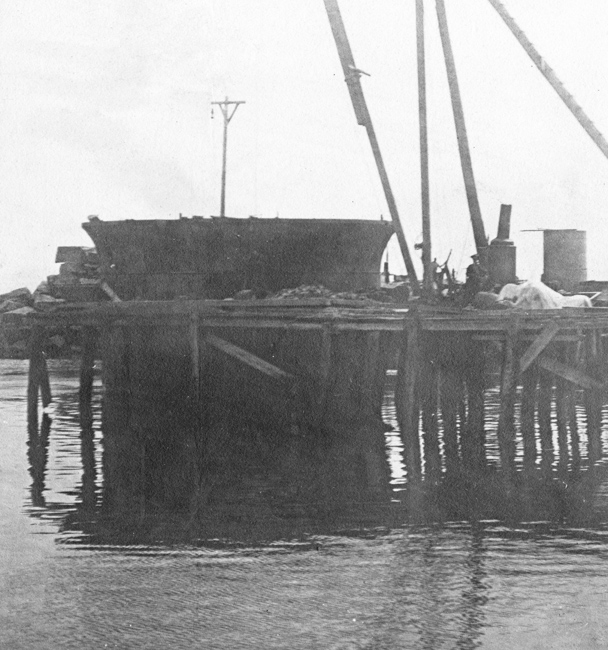

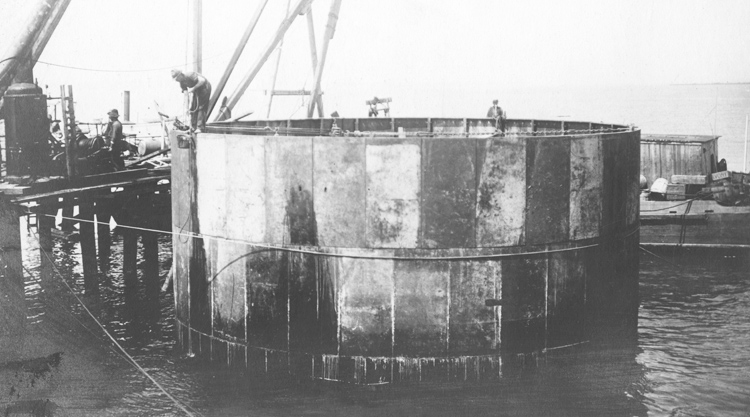

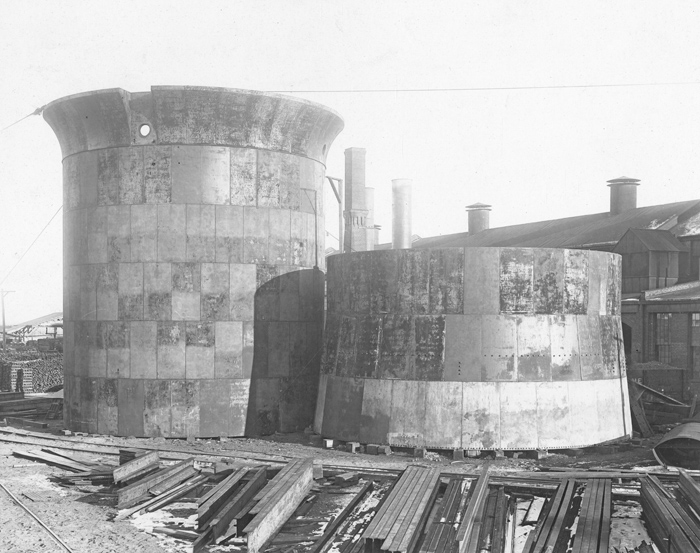

The massive iron caisson that would form the lighthouse’s foundation was completed in April 1899. This huge cylinder—essentially a hollow iron shell designed to be filled with concrete—was launched and prepared for towing to the harbor entrance. In June 1899, the caisson was lashed to a scow and towed down the harbor by local tugboats to its designated position just inside the eastern end of the outer breakwater.
Engineers soon encountered a problem. The harbor bottom was softer and muddier than expected, raising concerns that the structure might settle unevenly. To remedy this, dredging equipment excavated a pit approximately seven feet deep and filled it with gravel to create a firm base. When the caisson was lowered into position, however, its watertight seal ruptured and the massive cylinder sank quickly into the prepared pit.
Observers later recalled that when the caisson settled it tilted noticeably, “like the Tower of Pisa.” According to later recollections recorded in the New Haven press, a worker fell into the caisson during the commotion and drowned. Despite the mishap, engineers eventually corrected the tilt and continued construction.

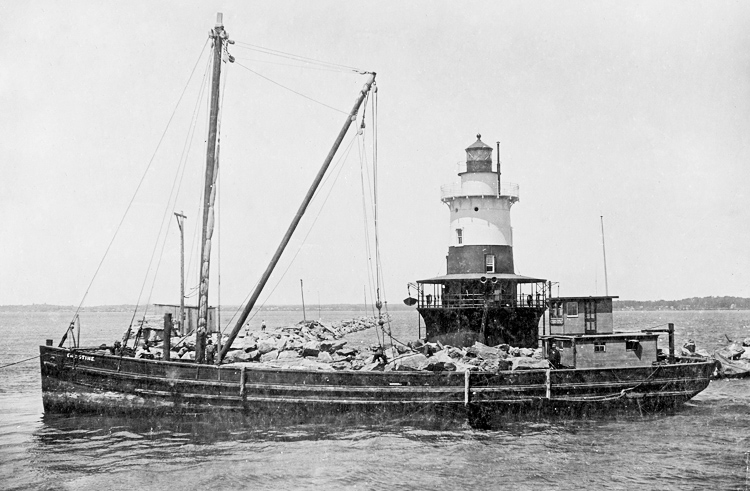

Once the caisson was properly seated, it was filled with concrete to create a solid foundation. By late June 1899, the cylinder had been secured in place, and contractors began building the lighthouse above it. To protect the site from waves and ice, thousands of tons of granite riprap were dumped around the base. More than 13,000 tons were placed initially, with additional stone added later.

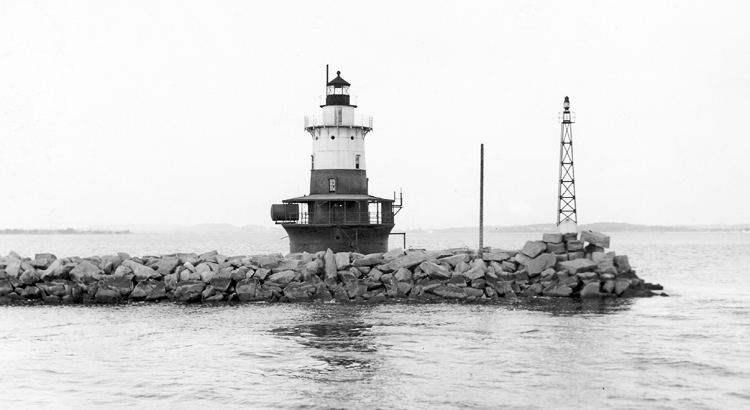

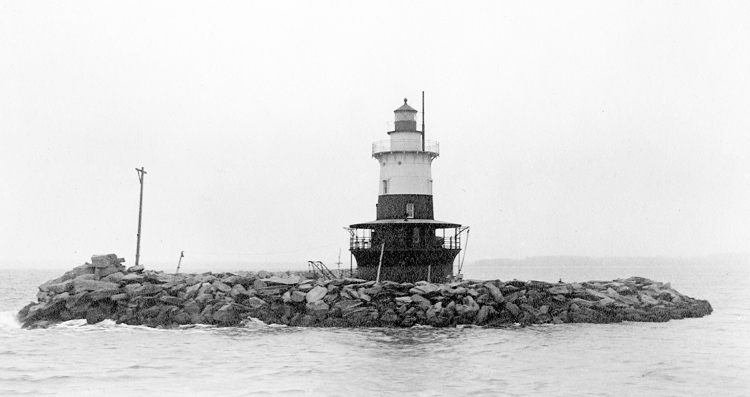

The completed structure consisted of a cylindrical iron foundation pier that flared outward at the top to form a gallery. Rising above it was a conical iron tower, brown on its lower half and white above, crowned by a black lantern. Inside, the tower was lined with brick and contained several levels for equipment and living quarters.
The lighthouse was nearly complete by September 1899. Standing about sixty feet above the water, it was designed to display a flashing red light visible for more than thirteen miles. Mariners approaching the harbor welcomed the new aid to navigation, as previous lights along the breakwater had proven unreliable during storms and winter weather.
The station was officially established on January 1, 1900. It displayed a fourth-order Fresnel lens producing a red flash every five seconds. The focal plane of the light was approximately sixty-one feet above mean high water, allowing it to be seen across a wide stretch of Long Island Sound.
Because fog frequently enveloped the harbor entrance, the lighthouse was also equipped with a powerful fog signal. On June 30, 1900, a second-class compressed-air siren was established. The signal produced blasts lasting three seconds separated by seventeen seconds of silence. The siren was operated by oil engines that compressed air for the horn.
Operating such machinery was demanding work for the keepers. Records show that the fog signal often ran for hundreds of hours each year and consumed large quantities of oil. The original system proved troublesome and was replaced in 1903 by a blower-type siren powered by smaller engines.
Although officially called New Haven Outer Breakwater Light, and later simply New Haven Light, the lighthouse was widely known as Sperry Light, honoring Nehemiah Day Sperry, a prominent New Haven congressman who had championed harbor improvements.
The first keeper assigned to the station was William H. de Luce, assisted by Bernice A. Francisco. Living conditions were typical of offshore lighthouse stations. Supplies had to be brought by boat, and during winter storms the keepers could be isolated for days at a time.
|
Despite the challenges, the keepers frequently came to the aid of mariners in distress. Throughout the early twentieth century, several rescues were credited to the station’s crew. In 1913, the keeper and assistant rescued two men from a boat endangered by high seas and later brought ashore two sailors from a capsized dory. Similar rescues occurred in 1919, 1921, and 1925 when keepers pulled stranded boatmen from the breakwater or nearby waters.
The station was not without tragedy. In January 1907, keeper Samuel A. Armour, who had previously served at Sheffield Island Light, rowed ashore to obtain supplies. Attempting to return during a severe storm, his small boat was overwhelmed by wind and waves. A passing vessel later reported seeing a man clinging to an overturned boat before he disappeared into the darkness. Armour’s body was eventually found months later on the shore of Long Island.
His widow, Rose B. Armour, reportedly kept the lighthouse burning throughout the stormy night after his disappearance. Several years later Congress considered legislation granting her financial assistance in recognition of her husband’s sacrifice in the line of duty.
In 1906, Keeper Armour reported the capture of a massive lobster weighing thirteen-and-one-half pounds. One of the lobster’s claws weighed three-and-three-quarters pounds.
Even during its early years, the lighthouse suffered from persistent structural issues. The caisson foundation, weakened by settling and constant wave action, began to crack. Engineers attempted to stabilize the structure by installing heavy iron bands around the tower.
One contributing factor was the vibration produced by the powerful fog-signal engines. In fact, the original thirteen-horsepower machinery had to be replaced partly because the shaking it produced threatened the integrity of the lighthouse itself.
By 1906 reports indicated that the tower had settled toward the west, causing iron plates in the structure to separate as bolts sheared off. Repair costs were estimated at $20,000—an indication of the continuing struggle to keep the lighthouse secure.
Despite repeated repairs, the problems persisted. Over time the iron caisson developed large cracks, and maintaining the lighthouse became increasingly difficult and expensive.
By the early 1930s the government concluded that the station could no longer be maintained safely. As part of a broader program of economy measures during the Great Depression, the lighthouse was discontinued in 1933. A powerful air whistle was placed in Southwest Ledge Lighthouse, which marks the easternmost of New Haven’s three breakwaters, to lessen the impact of the removal of the fog signal at the outer breakwater.
The tower was sold for scrap and dismantled by Louis Abrams’ scrap metal firm, whose workers carefully took apart the seven-story iron structure piece by piece. The work required nearly two months in 1940 and involved transporting heavy iron plates from the isolated site to barges in often-choppy seas. At one point the structure was accidentally set on fire by acetylene torches used during the dismantling.
When the work was finished, the once-prominent lighthouse had vanished from the harbor entrance. A smaller automated light mounted on a steel skeleton tower replaced it, continuing to mark the breakwater for passing vessels.
Today little remains of the historic lighthouse except the deteriorating iron caisson that once supported it. Visitors examining the site decades later have reported seeing cracked iron plates, rusted straps used for repairs, and fragments of the internal brickwork. Ironically, the failing foundation that ultimately doomed the lighthouse is the last surviving part of the structure.
Although it was active for only thirty-three years, New Haven Outer Breakwater Lighthouse played an important role during a period when the harbor was a bustling center of coastal shipping and passenger steamers. Its keepers maintained the light through storms, fog, and isolation while also rescuing numerous sailors in distress. Today, a modern automated beacon, known as New Haven Light, continues to flash over the entrance to New Haven Harbor on a platform adjacent to the old caisson foundation, carrying on the navigational service once provided by Sperry Light.
