 Peshtigo Reef, WI
Lighthouse best viewed by boat or plane.
Description: Peshtigo River empties into Green Bay at a point eight miles south of Marinette, Wisconsin. From the north side of the river, a shoal or reef projects into the bay roughly four miles and presented a significant obstacle for mariners. This submerged obstruction was not easy to mark, and over the years a day beacon, a lightship, and the current lighthouse have all served for lengthy periods to alert mariners of the dangerous reef.

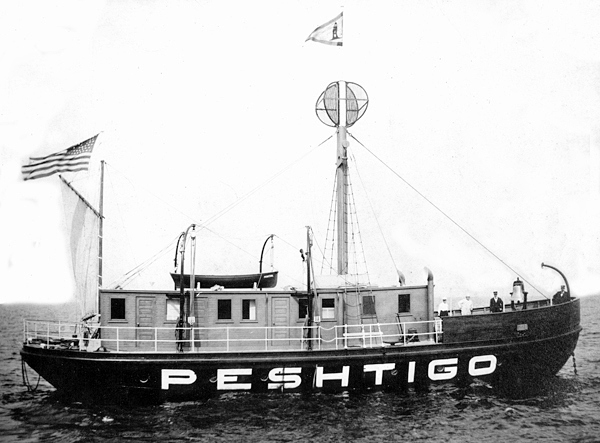

Peshtigo Lightship on station in 1832
Photograph courtesy U.S. Coast Guard
In 1865, a special committee of the Lighthouse Board was dispatched to the Great Lakes to ascertain the needs of commerce, with a charge to pay particular attention to Green Bay. As a result, a lighthouse for Chambers Island, range lights at the entrance to the Fox River, and a beacon for Peshtigo Reef were recommended. On July 28, 1866, Congress approved $25,000 for “additional aids to navigation in Green Bay, including a light-house on Chambers’s island and a beacon on Peshtigo shoal.”

After Chambers Island Lighthouse was completed in 1867, $10,000 of the appropriation remained for Peshtigo Reef, and the Lighthouse Board had plans drawn up for a day beacon. Completed by June of 1870, this beacon was described by the Board as consisting “of a wooden crib 30 feet square, surmounted by a pyramdical [sic] skeleton tower, upon which is placed an iron cage.”

In 1892, the Lighthouse Board noted that the “large and important commerce of the vicinity” had for many years been inconvenienced by the lack of a reliable mark on Peshtigo Reef and recommended that $10,000 be allocated for a light and fog signal. An act in February 1893 authorized the light and fog signal but made no appropriation, and after requesting funds in 1893 and 1894, the Board apparently reconsidered the project. In 1898, the Lighthouse Board stated that marking the reef with a buoy was difficult as the water deepened rapidly at the twelve-foot line and acknowledged that establishing a lighthouse on the reef “would be a dangerous experiment, due to the tremendous push of floating ice in the vicinity.” Instead, the Board requested $15,000 for a lightship.

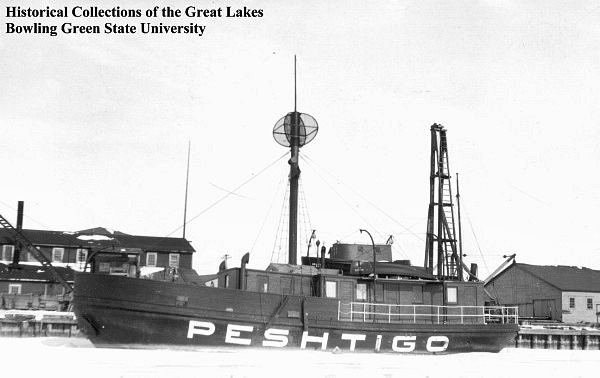

After the Lighthouse Board repeated its request for a lightship for Peshtigo Reef each year, Congress finally appropriated $15,000 for the vessel on June 28, 1902. Johnson Boiler Co. built lightship No. 77, a steel-hulled vessel with a length of seventy-five feet and beam of twenty-one-and-a-half feet, at Ferrysburg, Michigan in 1905 under a contract for $13,950. The lightship was delivered by the contractors to Sturgeon Bay in November 1905 and was placed on station on April 28, 1906.

Lightship No. 77 had four staterooms, a bathroom, and a galley and was equipped with a hollow steel mast from which a light was shown from three oil lens lanterns. In times of low visibility, the crew would ring a fog bell by hand.

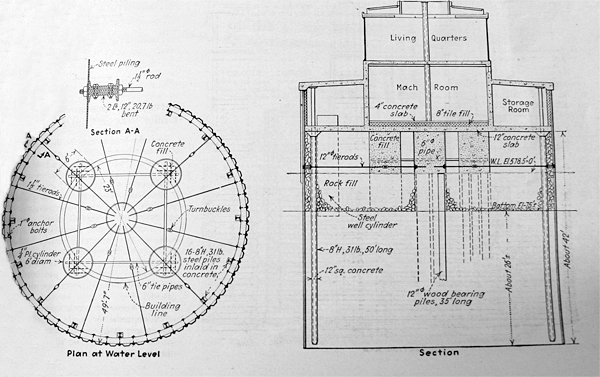

Drawing of foundation for Peshtigo Reef Lighthouse
In 1923, the Commissioner of Lighthouses noted that Peshtigo Reef was in the direct line of the heavy coal traffic, amounting to 850,000 tons, making its way to and from Green Bay City. As the lightship was unable to mark the reef in early spring and late fall due to ice conditions, the commissioner stated that the coal traffic “fully warrants the construction of a fixed station on crib at this point, replacing the vessel.”

The following description of Peshtigo Reef Lighthouse was given in the “important works completed” section of the 1936 Annual Report of the Commissioner of Lighthouses.

This station constructed near the outer end of Peshtigo Reef in 10-foot depth and placed in full commission on May 6, 1936, replaces Peshtigo Reef Lightship which has been discontinued, resulting in a material decrease in maintenance cost as well as providing a more effective aid to navigation.

The pier supporting the superstructure is cylindrical, 50 feet in diameter and constructed of interlocking sheet-steel piling braced at the water line by a circumferential girder which is in turn braced by cross ties and by rods anchoring it back to five cylindrical piers within the enclosure which support the lighthouse proper. These five inner piers are 6 feet in diameter and are supported on wood bearing piles.

Inside of the ring of sheet piling, steel-encased H-beams bearing piles have been driven spaced at approximately 9-foot intervals and supporting the outer edge of the basement floor and the outer edge of the deck of the pier, which is of reinforced concrete. The pier itself is filled with stone ballast and a thick mat of riprap extends for some distance around the pier to prevent erosion.

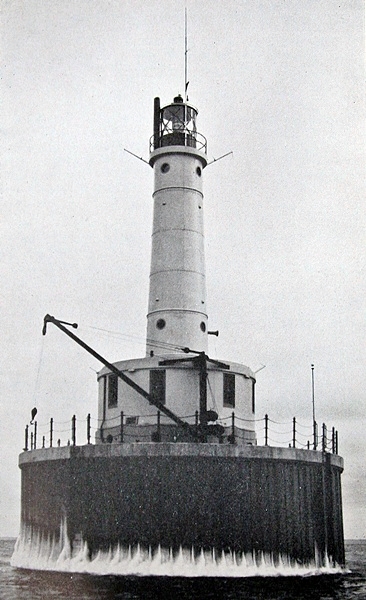

Peshtigo Reef Lighthouse in 1935
Photograph courtesy Lake Carriers Association
The outer portion of the basement is utilized for storage, etc., and the inner portion under the tower proper is a machinery room, lighted through posts built into the circular lower base, which is of concrete and which projects above the deck level. Where the basement joins the sheet pile wall, the latter is backed up with hollow-tile masonry.

The superstructure consists of a cylindrical steel tower, the first story of which is 25 feet in diameter, providing living quarters for keepers. The remainder of the tower is conical, housing the compressed-air diaphragm type of fog signal and supporting a special lantern of the helical-bar type in which is housed the illuminating equipment. A fixed white electric light of 26,000 candlepower shines from a fourth-order lens.

The station power plant, consisting of two gasoline-driven 5-kilowatts generators and storage batteries, supply power to the light and electric air compressors which supply air for the diaphragm fog signal. Current is also supplied to a fog bell which is operated continuously.

While this station has accommodations for keepers suitable for use in emergency, it is not operated as an attended station but is remotely controlled by radio from Sherwood Point Light Station some 8 ½ miles distant. The light operates automatically by time switch, but the electric generators are started and stopped at will from the shore station through radio control. The continuous operation of the fog bell is an insurance against any interruption of the radio control, and the latter is installed completed in duplicate, using a separate wavelength for each complete control channel. The method of control used is that which has been in successful operation at Fourteen-Foot Shoal Light Station for a number of years and for the last 2 years has been in service controlling Lake St. Clair Lightship.

A radiotelephone transmitter at Sherwood Point provides the control and a similar transmitter at the Peshtigo Reef Station provides communication with the shore when attendance or tests are in progress. The two keepers of Sherwood Point Station visit the Peshtigo Station at periodical intervals for a general check-up on the mechanical equipment of the station. The total cost of the station was $80,710.17.

Conrad Stram was keeper of Sherwood Point Lighthouse when Peshtigo Reef Lighthouse commenced operation in 1936. Interestingly, Keeper Stram was Captain of the Peshtigo Reef Lightship from 1908 to 1913, and then served at Cana Island Lighthouse, Lansing Shoal Lightship, and Sturgeon Bay Canal Lighthouse before being appointed keeper at Sherwood Point. Keeper Stram used a tuning fork to transmit a tone to Peshtigo Reef where a reed, tuned to the same frequency, picked up the vibrations and tripped a relay to activate the fog signal. Until his retirement in 1945, Keeper Stram would take a boat out to Peshtigo Reef each week to service the light.

References

  1. Annual Report of the Lighthouse Board, various years.
  2. Report of the Commissioner of Lighthouses various years.
  3. Keepers of the Lights, Steven Karges, 2000.

Location: Located just under four miles southeast of where the Peshtigo River empties into Green Bay.
Latitude: 44.956631
Longitude: -87.579117

For a larger map of Peshtigo Reef Lighthouse, click the lighthouse in the above map or get a map from: Mapquest.

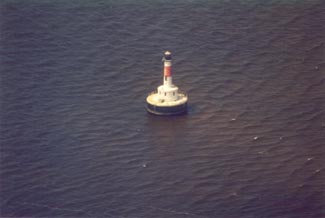

Travel Instructions: Peshtigo Reef Lighthouse is best seen from the water or air. We chartered a plane with Orion Flight Services out of the airport near Sturgeon Bay for the aerial shot.

The lighthouse is owned by the Coast Guard. Tower closed.
