 West Quoddy Head, ME
Lighthouse accessible by car and a short, easy walk.Interior open or museum on site.Photogenic lighthouse or setting.Active Fresnel Lens
Description: The Passamaquoddy are a Native American people who for centuries have lived along Maine’s St. Croix River and Passamaquoddy Bay. Their name means “pollock-spearer,” rightly reflecting their reliance on fishing. Similarly attracted by the area’s plentiful fish, Europeans established settlements in the area starting in 1604.

As commerce increased, local citizens petitioned the government in 1806 for a lighthouse to mark the entrance to Passamaquoddy Bay, which is guarded by dangerous basaltic outcroppings. The petition recommended, albeit in a rather convoluted manner, that West Quoddy Head would make an ideal site for the tower: “We…take the liberty to suggest that the site on the mainland the bank being forty feet above the high water – is the most projecting and the nearest to acceptability that we are of opinion that this is the most elligable [sic] and judicious that can be pitched upon for the purpose and in our judgment the elevation should not be less than 75 feet above the ground exclusive of the lantern.”

Buy at Art.com
Buy From Art.com
In early 1807, Congress allocated $5,000 for the Secretary of the Treasury “to cause to be erected a light-house on West Passamaquoddy Head, at the entrance into the bay and harbor of Passamaquoddy, in the District of Maine.” Massachusetts ceded 100 acres on the headland upon which Benjamin Beal and Duncan W. Thaxter were contracted to build a wooden, octagonal tower and dwelling. Thomas Dexter, the first keeper assigned to West Quoddy, earned an annual salary of $250. At many light stations, keepers were able to grow crops and keep livestock, but the soil at West Quoddy was unsuitable for such ventures. Dexter was thus forced to travel extensively for supplies, and his salary was raised to $300 a year in 1810 to compensate him for the extra trouble.

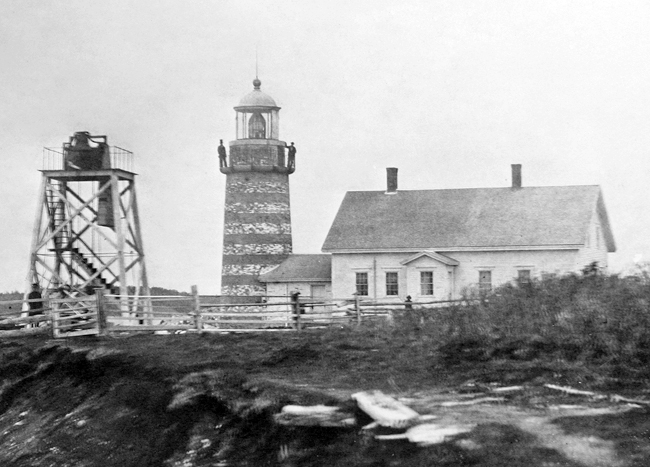

Established in 1808, West Quoddy Lighthouse is noteworthy in several ways. Despite its name, it is the easternmost beacon in the United States, one of only two U.S. lighthouses with red-and-white bands, and one of the first stations to be equipped with a fog bell and, later, a steam whistle. A reliable fog signal was deemed more essential in this area than a light since fog shrouded the coast for roughly half the time during the summer months. When ships approached the bay in foggy conditions, they would fire a signal gun to prompt the keeper to start tolling the fog bell. This arrangement continued until an adequate mechanical ringer for the bell was installed.

Captain Joseph Smith noted in a report in 1837 that four bells had been used at West Quoddy. The first bell weighed 500 pounds and was installed after a Congressional Act of May 15, 1820 provided “a sum not exceeding one thousand dollars...for placing a bell near the light-house on West Quoddy Head.” Another act in 1826, gave the “keeper of West Quaddy (sic) Head light-house...in addition to his present salary, the sum of sixty dollars annually, for ringing the bell connected with said light-house, from the time he commenced ringing said bell.”

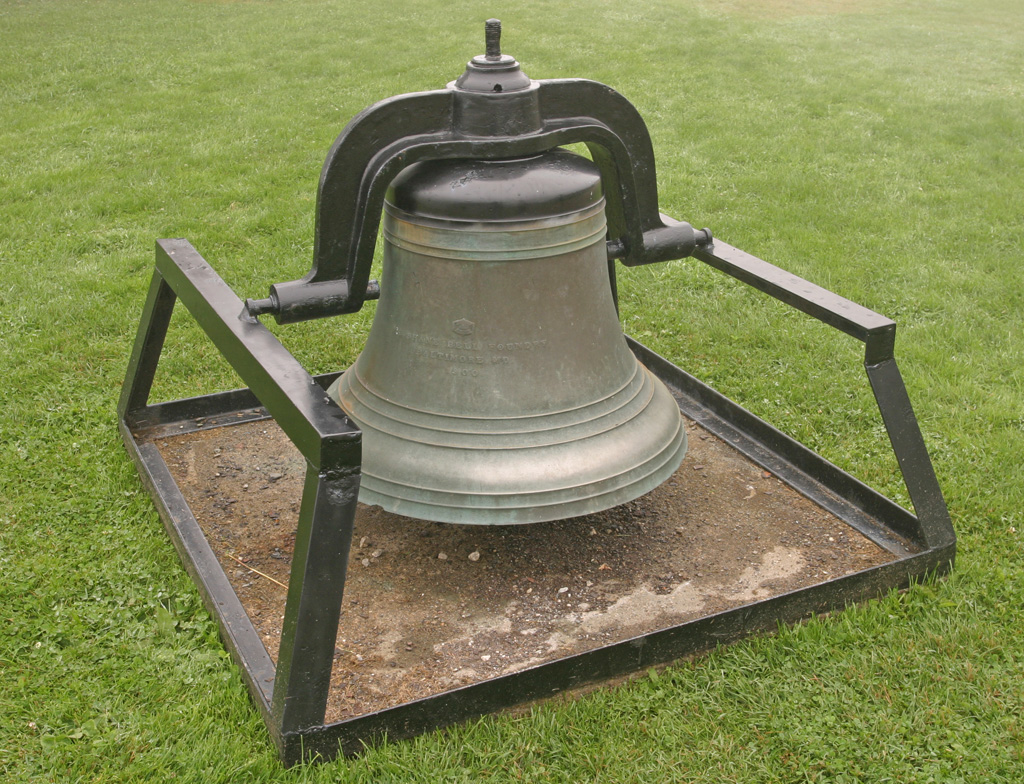

The original bell was replaced by a 241-pounder that was supposed to send out a more penetrating, higher-pitched sound, but when it didn't improve things, it was replaced by a mighty 1,545-pound bell. The fourth “bell” was a “cast-steel bar, two and three-eighths inches square, fourteen and a half feet in length, and of a triangular form,” that Captain Smith judged “worse than useless” and noted that it could not “be heard much more than a quarter of a mile in heavy weather.” To improve matters, Smith recommend a light and bell be established on Sail Rock, 500 yards offshore, explaining that there the bell could be heard a much greater distance outside the surf on the shore. In 1838 Congress authorized funds for a lighthouse and bell on Sail Rock, but the lighthouse was never built, and the fog bell remained at West Quoddy.

After two decades of service, the original wooden West Quoddy Lighthouse had deteriorated to the point that Congress approved funds in March of 1831 for a replacement. Joseph Berry subsequently completed a rubblestone tower for $2,350, and the ten lamps in its lantern room were lit on August 1, 1831. Just over a decade later, Keeper Alfred Godfrey, who succeeded his father after the latter’s 26 years of service at the station, described the sorry condition of the dwelling and lighthouse at West Quoddy: “The house leaks all about the eaves and windows in rainy weather. The chimneys smoke badly…we have no rain water cistern, no well. Our water for domestic use is obtained from a spring about 200 yards from the house. The lighthouse stands 110 feet from my house door, on the edge of the cliff...The tower is built of rubble stone, badly laid. In winter the walls are coated with ice from the effect of leakage. The windows of the tower blow inward in storms from being insufficiently framed...In winter the inside of the glass is coated with ice, from the condensed vapors of the burning lamps, and in summer the glass is also covered with sweat and condensed vapor.”

For years, the U.S. government refused to install the clearly superior French-made Fresnel lens in its lighthouses, and mariners (especially those who had sailed in Europe) complained about the shamefully inadequate state of American lighthouses. On August 18, 1856, $15,000 was appropriated “for rebuilding the light-house,” at West Quoddy Head, “and fitting it with proper illuminating apparatus.” In this case, the “proper illuminating apparatus” was a fixed, third-order Fresnel lens manufactured by L. Sautter of Paris. The new brick tower and wood-framed dwelling, which remain standing today, were completed in 1858.

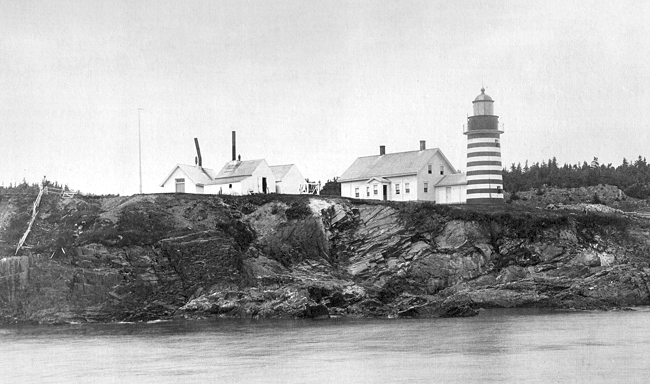

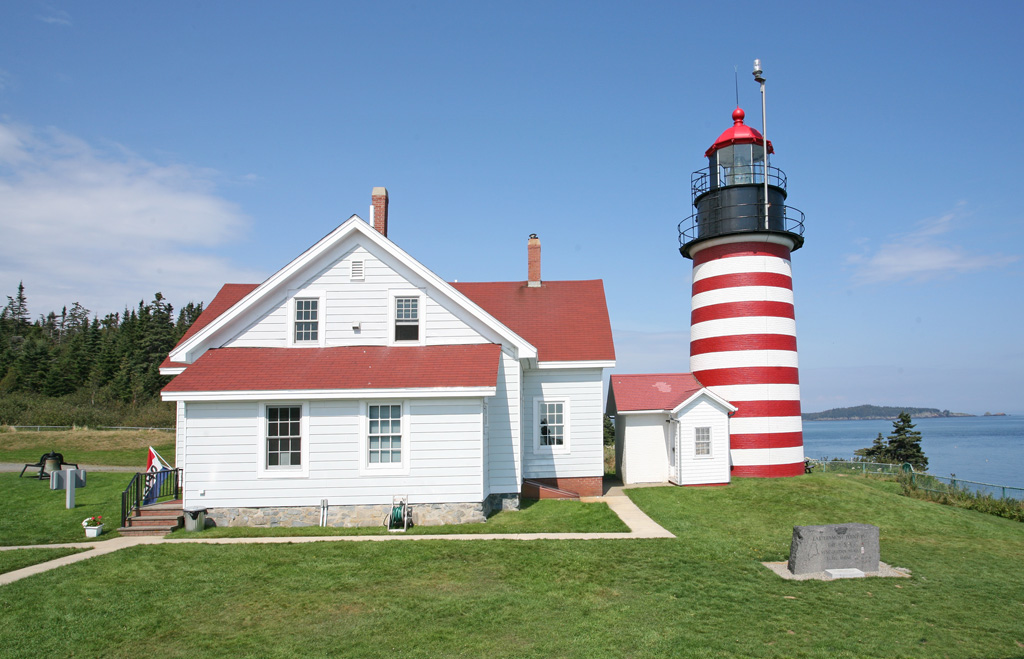

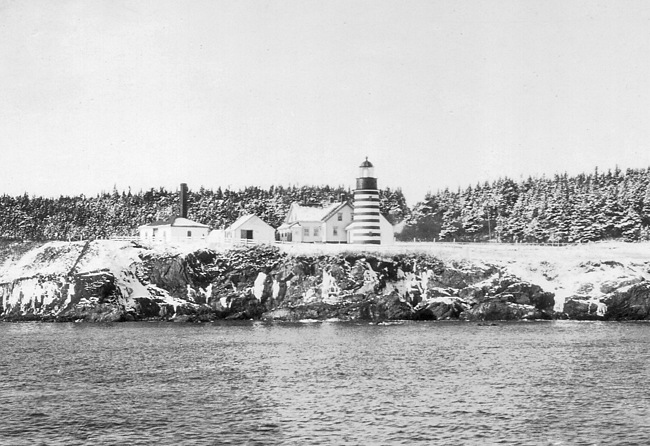

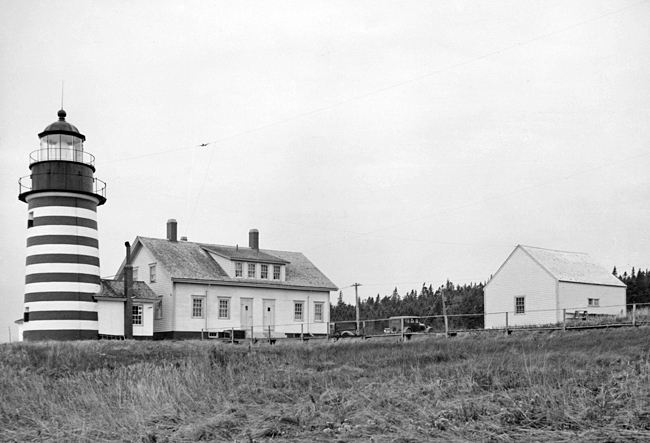

West Quoddy Head Light Station
Photograph courtesy U.S. Coast Guard

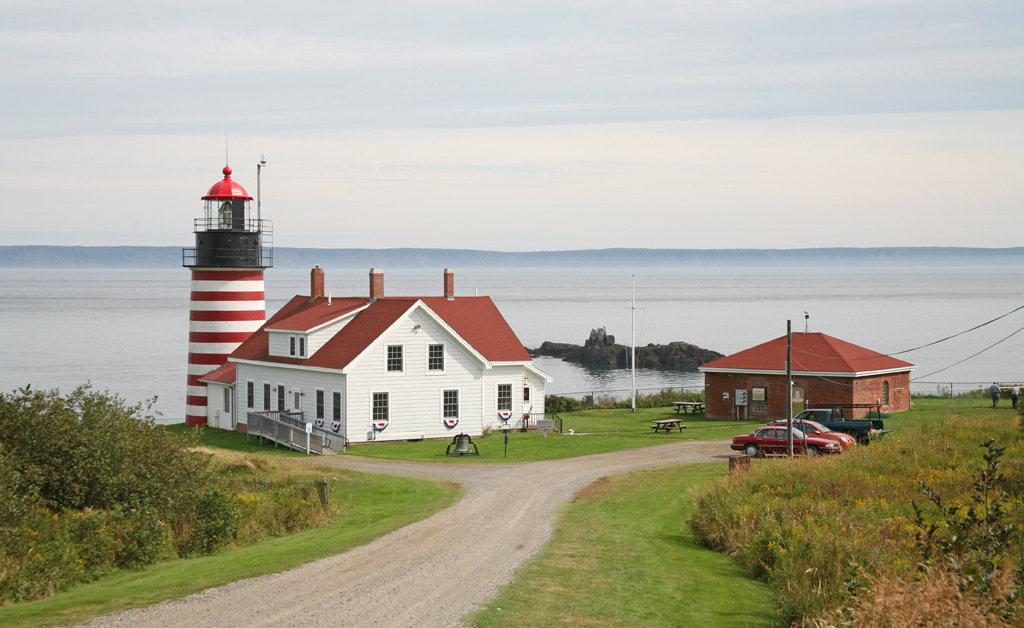

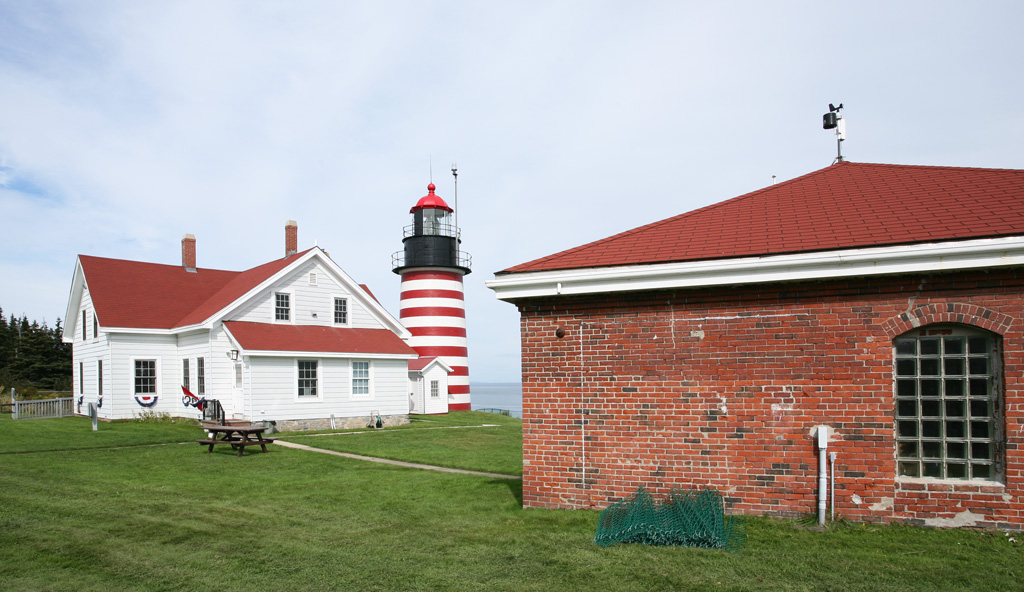

In 1866, a fog signal trumpet powered by a hot-air engine was established at the station, but just two years later, plans were in the works to install an 8-inch steam whistle, as the trumpet was found to be defective in power. In 1885, the steam whistle at West Quoddy logged more hours of operation than any other fog signal in the United States – an amazing 1,945 hours. The current brick fog signal building was added in 1887, followed by a brick oil house in 1892.

In an 1872 inspection, the West Quoddy station was found to be in deplorable condition. Inspector James K. Cogswell wrote: “In the whistle house the boilers were stained with dirt and dusty, the steel rods of the engines were somewhat rusty and covered with dust. The paintwork of the interior of the tower showed neglect, and in the lantern room the lens was dusty, brass work greasy, and greasy rags about. The walks, and fence about the grounds, were in poor condition.”

West Quoddy was at that time considered a plum assignment for a keeper, in part because of its easy access to the nearby town of South Lubec. As punishment, Cogswell proposed that the guilty keeper, John W. Guptill, be transferred to a less desirable station. Guptill resigned rather than accept the transfer to Avery Rock Light, saying, “after being in the service more than seventeen years and seven of them at Averys Rock I cannot go there again…”

In 1899, two kitchens and pantries were added to the west side of the dwelling, and the house was divided into a duplex to provide separate living spaces for the two keepers and their families. Sometime in the 1950s, the house was converted back into a single-family dwelling. In 1895, the two outer courses of brick in the tower were replaced with glazed bricks. The Coast Guard had a hard time making paint adhere to the new bricks, but a good sandblaster soon remedied that problem.

The beacon at West Quoddy was originally fueled by whale oil, followed by lard oil in the 1860s and then kerosene around 1880. In 1934 the light was electrified, and a flasher changed the characteristic to a flashing white light every 15 seconds.

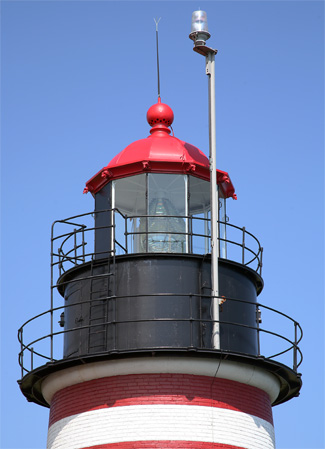

In 1988, the station was automated and ownership transferred to Maine’s Bureau of Parks and Land under the Maine Lights Program. West Quoddy Lighthouse is still operational and continues to use the 1858 third-order Fresnel lens . The light, which is visible for 15 to 18 miles, flashes in the following unusual sequence: 2 seconds on, 2 seconds off, 2 seconds on, 9 seconds off. Since 2002, volunteers from the West Quoddy Head Light Keepers Association have operated a visitor center in the keeper's dwelling.

Photo Gallery: 1 2 3 4 5 6 7

References

  1. Annual Report of the Light House Board.
  2. Maine Lighthouses Documentation of Their Past, J. Candace Clifford and Mary Louise Clifford, 2005.
  3. “West Quoddy Head Light Station,” Wayne Wheeler, The Keeper’s Log, Winter 2006.

Location: Located in West Quoddy State Park, on the easternmost point in the United States.
Latitude: 44.815108
Longitude: -66.950671

For a larger map of West Quoddy Head Lighthouse, click the lighthouse in the above map or get a map from: Mapquest.


Travel Instructions: From Route 1 in Whiting, continue east on Highway 189 for just under ten miles towards Lubec. Before reaching Lubec, turn south on Boot Cove Road as indicated by the lighthouse signs. After 2.8 miles, the road turns east and becomes Quoddy Head Road. Follow this road into Quoddy Head State Park, where you can park and walk a short distance to the lighthouse.

West Quoddy Lighthouse is open daily from mid-May to mid-October from 10:00 a.m. to 4:00 p.m. Call (207) 733-2180 for more information.

The lighthouse is owned by the Maine Bureau of Parks and Lands. Grounds open, dwelling open in season, tower closed.

Find the closest hotels to West Quoddy Head Lighthouse

Notes from a friend:

Kraig writes:

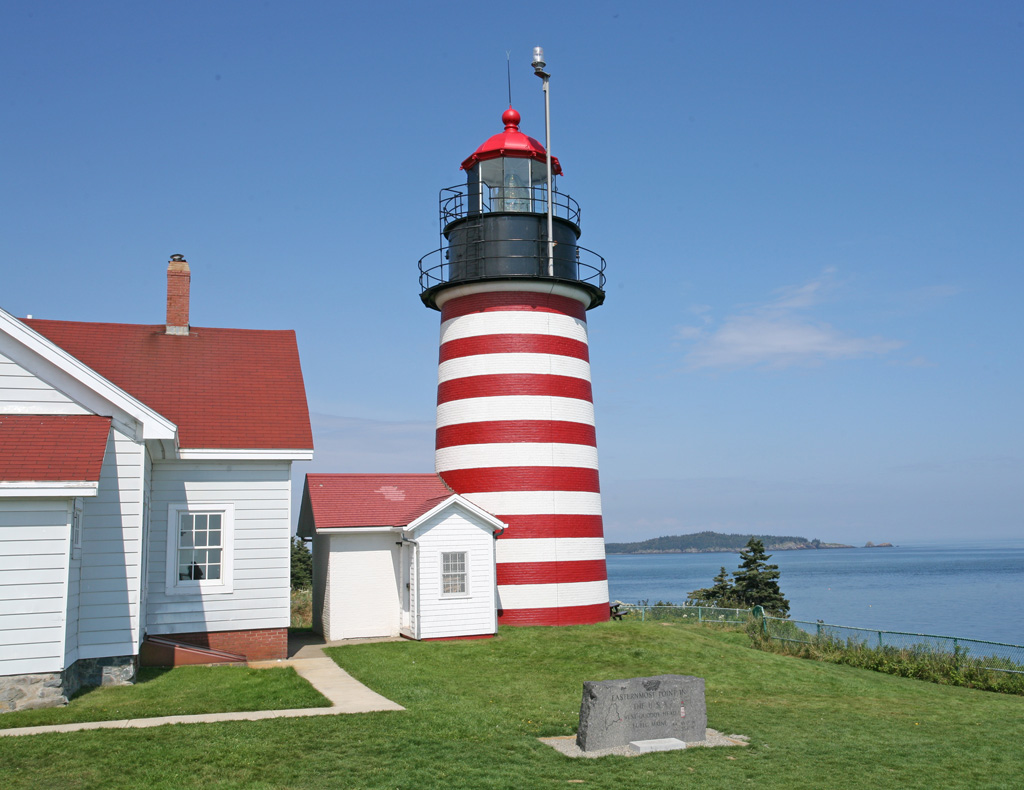

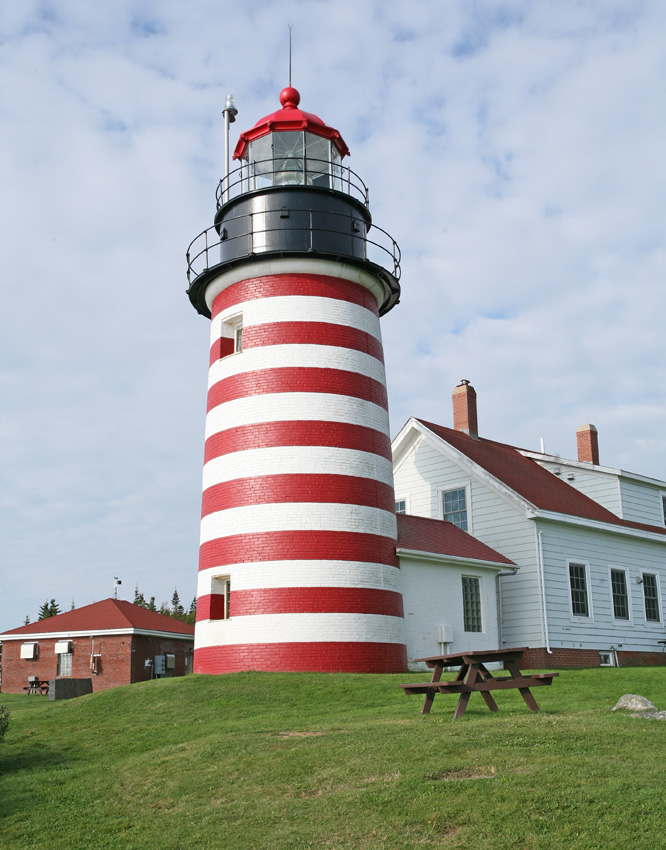

Most people know that there are thirteen stripes in the U.S. flag - one for each of the thirteen colonies - but how many are red and how many are white? Well, now there are seven red and six white, but that was not always the case. West Quoddy Lighthouse has also had a varying number of red and white stripes. At one time, the tower sported six red stripes and six white stripes, with the topmost stripe being red. Currently, the tower has eight red stripes and seven white stripes.
