 Baltimore, MD
Lighthouse best viewed by boat or plane.Privately owned, no access without permission.Lighthouse open for climbing.Interior open or museum on site.
Description: Constructing Baltimore Lighthouse proved to be one of the more difficult tasks ever undertaken in the interests of establishing an aid to navigation in the United States. When the Lighthouse Board requested $60,000 in 1890 for a beacon to mark the entry point of the New Cutoff Channel near the mouth of the Magothy River, it had some idea of what it was getting into: “On account of the impressible character of the shoal, and the liability to damage or destruction by fields of moving ice, no light-house, other than an expensive one, can be made permanent.” The difficulty of the task delayed completion of the lighthouse until eighteen years after the initial funding request.

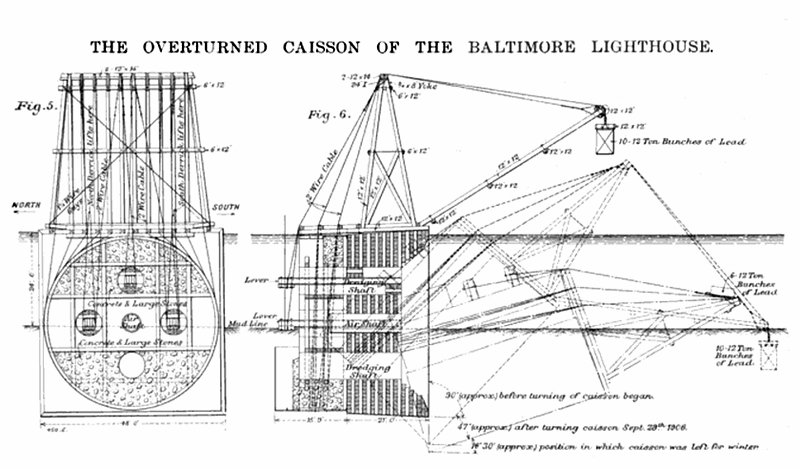

Design of equipment for righting overturned caisson
From Engineering Volume 85, 1908
Congress granted the Board’s first request for funding on August 18, 1894, and the site was subsequently examined by boring deep into the shoal at the selected site. The results of these tests were discouraging as they revealed that a layer of soft mud extended fifty-five feet below the surface of the shoal before a stratum of sand that would afford a proper foundation for the lighthouse was encountered. The Board concluded that while sinking a foundation through this deep mud would be “somewhat difficult” for the allotted $60,000, a lighthouse resting on a screwpile foundation might be possible.

Improvements in the Craighill Channel led the Lighthouse Board to shift the site for Baltimore Lighthouse to a new site where examinations showed that a safe foundation could be had at less depth that at the original location. On September 9, 1898 an attempt was made to plant an experimental disk pile at the new site, but after two hours of work, the pile reached a depth of just three-and-a-half feet in the mud strata. The Board was led to conclude “that the expense of building a light-station in the 55 feet of semifluid mud which overlays the sandy bottom” would cost twice as much as the original request and would require a caisson foundation capable of resisting 100 mph winds, 30,000 pounds of ice pressure per square foot, and a three mph current. The Board made their new recommendation annually to Congress three times, until the entire amount was approved on July 1, 1902.

A final design for Baltimore Lighthouse was approved on October 13, 1902, and bidding for the job was opened the following spring. Somewhat ominously, only one bid came in for the erection of the lighthouse, and that was $80,000 over the entire budget. The sole bid was rejected, but Congress approved yet another $60,000 to make the project feasible, bringing the grand total of allocated money to $180,000. In the next round of bidding, William H. Flaherty was the only participant. He and his partner, Frederick Martin Lande, had experience building caisson lighthouses and by cutting back on certain material allotments were able to submit a bid below the budgeted amount.

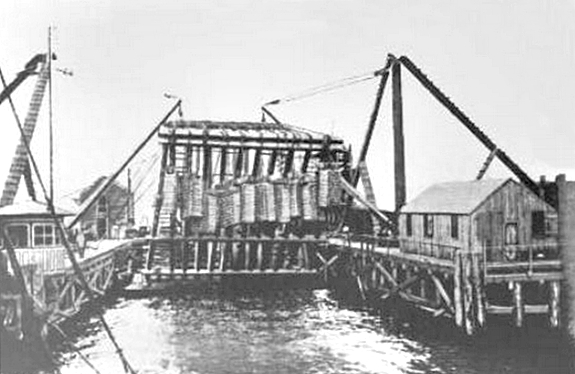

Weights hung on A-frames to right caisson
From Engineering Volume 85, 1908
The metalwork for the lighthouse was contracted to a company in Atlanta, Georgia, which completed the task in 1904. In September of that year, a portion of the thirty-foot-diameter metal cylinder that would serve as the foundation was launched from the Lazaretto Lighthouse Depot and towed to the site. A Baltimore newspaper commented that “the erecting of this big lighthouse will be one of the most difficult tasks ever undertaken by lighthouse builders.” Indeed, two days after its arrival heavy at the site, seas filled the cylinder and knocked it off kilter by about seven feet. At this point, the caisson had been sunk a mere eight feet into the shoal. The contractor left the site to gather additional materials and returned in October. Two more courses of iron plates were added to the caisson and concrete was poured on the high side of the cylinder in an attempt to level the foundation, but all this work was for naught as a severe storm on October 12 caused the cylinder to turn over on its side. Flaherty left the scene once more, and this time he did not come back.

The government sued the contractor, and the insurance company which had bonded Flaherty was forced to step in and complete the job. Over the next three years, the United States Fidelity and Guaranty Company funded workmen to bring the caisson back to level. First, they removed over half of the 120 iron plates attached to the structure in the late fall of 1905, then the following spring, they built a U-shaped pier around the caisson and brought in counterbalancing equipment, which consisted of a steam engine, air compressors, water tanks, a hoisting machine, A-frames, and temporary quarters for workers. During the summer of 1906, heavy weights were suspended by wire cables from A-frames placed on the overturned caisson as shown in the diagram above, and by the end of September the caisson protruded from the shoal at an angle of forty-five degrees. Pumps were then used to remove mud from under the high side of the cylinder. When work was stopped in late November, the caisson was just seventeen degrees from vertical. The following spring, additional courses were added to the cylinder, and eighty tons of stone were placed in the compartment on the high side of the cylinder as mud was pumped out from below. Over the course of several months, the caisson was gradually straightened as it sunk to a depth of eighty-two feet below high water.

The Lighthouse Board declared the surety company’s efforts a “remarkable success” and provided the following description of the finished lighthouse:

This light, in 23 feet of water, is located to the westward of the southerly entrance to Craighill Channel, Baltimore Harbor. The structure is a brown cylindrical foundation pier, expanding in trumpet shape to form a gallery, surmounted by a white octagonal two-story brick dwelling, with mansard roof and a black lantern. The lower part of the structure consists of a square wooden caisson 48 feet wide at the bottom, 46 feet on top, and 21 feet high, provided with a working chamber and air and dredging shafts. On the roof of this caisson a cylindrical cast-iron shell rests, having a diameter of 45 feet for the five lower courses, each 6 feet 3 inches in height; then conical for the next four sections, 6 feet each in height, and with the top section trumpet shaped, the total height of the shell being 82 feet 3 inches, and of the whole foundation pier 103 feet 3 inches. After sinking to the proper level below the bottom of the bay the working chamber and parts of the shafts were filled with concrete, and the entire shell with concrete and large stones except the spaces for cisterns and cellar. The illuminating apparatus is a fourth-order lens showing a flashing white light every 10 seconds, and was shown initially October 1, 1908.

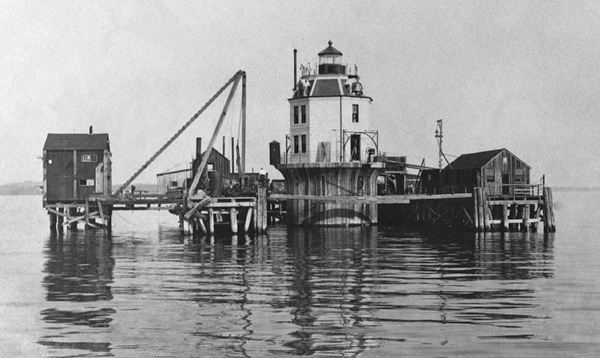

Construction of Baltimore Lighthouse nearing completion
Photograph courtesy U.S. Coast Guard
The first floor of the lighthouse provided the main living space for the keepers, including a sitting room and a kitchen, which was equipped with a hand pump to bring up water from the cistern housed in the top portion of the caisson. Just outside on the gallery, a cast-iron structure resembling a guard shack was cantilevered over the water to serve as the station’s privy. Two bedrooms were located on the second floor, while a small watchroom was located directly beneath the mansard roof, which was originally covered with colorful slate tiles.

The lighthouse had a short life as a staffed station as in 1923 its illuminant was changed to acetylene at a cost of $1,280, its fog bell was discontinued, and its keepers removed.

Baltimore Lighthouse became the world’s first nuclear powered lighthouse on May 20, 1964, when a sixty-watt isotopic power generator called SNAP-7B was installed in it to see if such equipment could be used in remote locations. According to a local newspaper, this generator was “smaller than a 55-gallon oil drum,” and was reputed to be capable of supplying an uninterrupted ten-year flow of electricity without any maintenance or refueling. The installation of the 4,600-pound generator is shown in the photograph to the right, but it was removed two years later, after having been shown to be “completely reliable and quite stable,” and installed at an offshore oil platform in the Gulf of Mexico. This wasn't the Lighthouse Service's first foray into nuclear power as it had launched a nuclear buoy in 1961. Ironically, the first vessel to pass the lighthouse while the generator was being installed was the NS Savannah, the world's first nuclear-powered cargo-passenger ship.

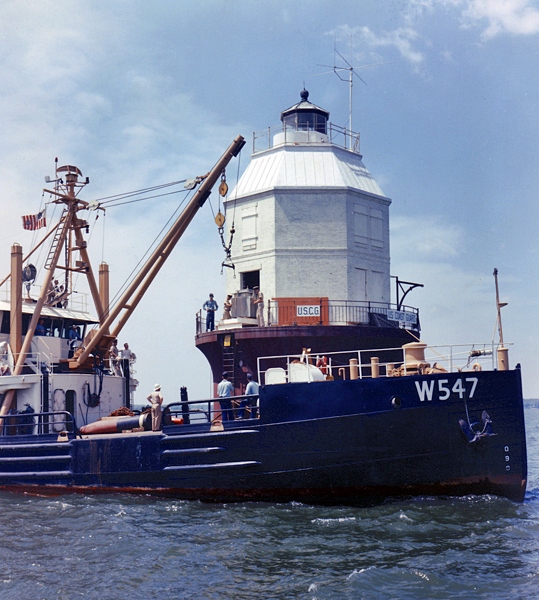

Crew of buoy tender White Pine installing the nuclear generator
Photograph courtesy U.S. Coast Guard
Like most lighthouses, Baltimore Lighthouse has suffered since automation removed its live-in caretakers. A 1983 Coast Guard report, made in preparation for the extensive “Operation Spruce Up,” revealed how bad the damage had become. Besides the near ubiquitous water damage, unsealed windows had led to proliferation of pigeons, eggs, and guano “several inches thick on all decks and even the stairway.” The lantern glass panes and the lens, serving as a beautiful beacon, inevitably attracted their share of bullets. Vandals also left their mark on the station’s wooden door and had even tried to burn the interior of the lighthouse.

To preserve the lighthouse, the windows were bricked up, the wooden door was replaced with a steel one, acrylic panes were installed in the lantern, and the access ladders were raised beyond normal human reach. In 1988, Lt. Sam Neill, commander of the Coast Guard buoy tender Red Birch, expressed concern for the condition of the lighthouse. While he acknowledged that the boat davits and the iron outhouse no longer had any utility, he still recommended painting them in the interest of “historical significance.” Between 1989 and 1990, the Red Birch’s efforts included sandblasting the caisson, caulking and painting the masonry, and replacing the water-logged timbers of the lantern floor with tongue and groove boards.

Baltimore Lighthouse was put up for public auction by the Real Property Disposal Division of the General Services Administration after no non-profit groups expressed interested in assuming responsibility for the structure when it was offered in 2004. With maintenance and repair costs escalating as our nation’s historic lighthouses age, private ownership is increasingly being turned to as a means to preserve them. The auction ended on June 28, 2006 with a final bid of $260,000. The new owner, BHL, LLC of Annapolis is a partnership of private citizens (four couples), who are committed to the preservation and restoration of Baltimore Harbor Light. The terms of sale dictate that the Coast Guard be granted access to the lighthouse for occasional checkups on the still-active light. The owners eventually plan on sharing their “privately owned museum” with the public through evenings or overnights at the lighthouse.

Head Keepers: John Berentsen (1908 – at least 1915), David W. Collison (at least 1917).

References

  1. Annual Report of the Lighthouse Board, various years.
  2. “Atoms Power Chesapeake Lighthouse,” Morning Herald, May 21, 1964.
  3. “Baltimore Harbor Lighthouse,” General Services Administration.
  4. Baltimore Light Station’s National Register of Historic Places Nomination.
  5. Bay Beacons, Linda Turbyville, 1995.

Location: Located on the western side of the Chesapeake Bay, 1.7 miles east of the southern end of Gibson Island.
Latitude: 39.0592
Longitude: -76.399

For a larger map of Baltimore Lighthouse, click the lighthouse in the above map or get a map from: Mapquest.


Travel Instructions: This light is best viewed from the water, but can be seen from Gibson Island or Beacon Hill. Watermark Cruises out of Annapolis and Chesapeake Lights offer a Lighthouse Cruise that passes this lighthouse. We visited the lighthouse with Down Time Sportfishing Charters. The owners of the lighthouse also offer excursions to the site.

The lighthouse is owned by BHL, LLC. Tower closed.
